Stock Code: 870145
XXP3S Series
Automatic Feeding Laser Marking system
It is suitable for processing whole rolls of synthetic materials or fabrics. The software is convenient for typesetting, and realizes continuous and uninterrupted automatic feeding and processing of whole rolls of materials. At the same time, it has a fixed processing area to meet the use scenarios of sheet materials and proofing.
Software is compatible with both working tables.
One time finish multi processing (perforation, engraving, cutting, marking).
Special design - the only one in Asia. Enclosed injection molding, more stable.
Equipped with three exhausters to increase the air flow, ensuring good marking effect.
Combined all capabilities of 11 machine (10 laser cutting machine + 1 laser marking machine).
Batch production, save labor cost, reduce material waste, save time, increase working efficiency.
Fixed table on right side (XXP3 model) is convenient for sample making during mass production.
Specifications
Model
Description
Industry application
Modules
Working area
Whole power
Laser power
System requirements
Power supply
Product dimensions
Weight
Custom
XXP3S-320
Auto Feeding Sys
1600*400mm
12170W
320W
Windows XP/7/8/10,Al,PLT,DXF.DST,BMPJPG,JPEG,PNG
380V 50Hz/60Hz
3107X1610X1900mm
1200kg
XXP3S-250
Auto Feeding Sys
600*600mm
9000W
250W
Windows XP/7/8/10,Al,PLT,DXF.DST,BMPJPG,JPEG,PNG
380V 50Hz
3107*1610*1900mm
1170kg
XXP3S-180
Auto Feeding Sys
300*300mm
6400W
180W
WIN10/11，PLT, DXF,JPG,BMP
380VAC/20A,50HZ/60HZ,
3150X2010X2010MM
2420KG
XXP3.2-250N
Auto Feeding Sys
300*300mm
5500W
180W
WIN10/11，PLT, DXF,JPG,BMP
220V/32A, 50HZ/60HZ
1150×1120×1580MM
260KG
Product Function
-

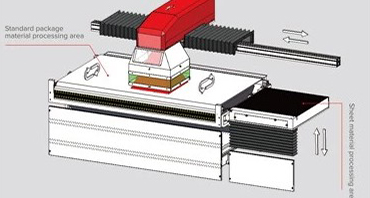

Double Working Table① Auto-feeding table for material in roll, for mass production, working area is 1600*400mm. ② Fixed working table for material in piece. Adjustable working area: 400*400mm - 500*500mm - 600*600mm. -
Smart Nesting SoftwareUltra-length smart Stitching + unlimited length nesting.
-

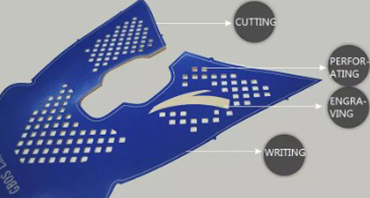

One Time Completed Multiple ProcessesOne time finish roll leather engraving, writing, perforation and cutting.
-
Fast Speed and High Efficiency① With 3D dynamic scan head. ② About 15% faster than competitors. ③ About 10 times faster than laser cutting machine.
-
Intelligent Lift PlatformFixed working table can be manually raised or lowered to adjust the working area.
-
Safety Design for SyntheticWhole machine adopt the fully enclosed design, it is more safety for the operator. And better effect to catch the smoke.
-
High-Precision Vision PositioningEquipped with an SCCD industrial camera, enabling edge-following recognition across a large-format area of 1600 mm × 1200 mm; automatically scans cutting paths with high-precision positioning and minimal cutting error—ideal for high-accuracy machining requirements.
-
High-Efficiency Cutting CapacityThe laser cutter achieves a single-pass cutting area of 400 mm × 400 mm; with seamless tiling, it covers up to 1600 mm × unlimited feed length—offering broad processing range and high efficiency, ideal for mass production.
-
Linear Guide Rail and Ball Screw AssemblyExceptional durability—capable of withstanding high-load operating conditions while maintaining consistent precision even during prolonged, high-intensity use. Compared to belt-driven systems, it offers lower maintenance costs and greater peace of mind.
-

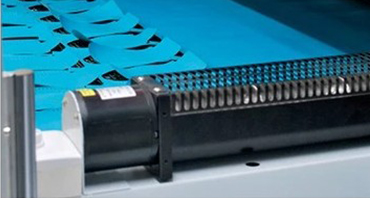

Integrated Feeding DeviceDuring the clamping and feeding stage, this device ensures flat and consistent material feed through precise clamping control and a stable feeding mechanism—significantly reducing material waste caused by uneven feeding and providing reliable support for downstream processing.
-
High-Configuration Laser GeneratorEquipped with an imported 180W high-power laser generator, enabling fast cutting speed and smooth cut edges; compatible with multi-material processing; highly durable and stable during long-term operation.
-
Smoke Extraction and Cleaning DeviceDual-side vacuum adsorption + laser-synchronized fume extraction in real time removes smoke and exhaust gases instantly, enhancing cutting performance, minimizing residue contamination, and improving the working environment.
-
Automated, Hassle-Free WorkflowRoller-based automatic feeding with real-time tracking correction, one-touch cutting initiation, and high-end automation throughout the process—reducing operator workload and enhancing production continuity.
-
Ergonomic Structural DesignFront-mounted foldable stainless-steel material collection table + rear-mounted tracking-correcting collection rack—optimized footprint and convenient material handling; dual-side electrical control cabinets with hinged cover doors—safer and more convenient maintenance and operation.
Expand More +
Functions & Modules
-
Purify and treat the smoke and waste gas generated during the cutting processMore Details
-
-
Realize intelligent identifying cutting along the edge, the identifying range: about 150mm*120mm.More Details
Expand More +
Industry Solutions
-
Garment Accessories Industry
-
Leather Goods
-
Automotive Interior Industry
-
Footwear Industry
Garment Accessories Industry
The camera quickly captures the outline of the label for precise cutting. The software automatically identifies unqualified products and cuts without burnt edges or yellow edges. Any angle of label is possible.
Leather Goods
In the traditional leather cutting filed, it faced many problem! How to solve it?
Automotive Interior Industry
Laser cutting seat cover, and other automotive interior materials becomes a trend due to the versatile laser technics of laser cutting, laser perforating, laser marking, and laser engraving.
Footwear Industry
AI-Driven, smart footwear Manufacturing 4.0: zero cutting-dies, one-stop digital cutting solutions.
Book an virtual demonstration with us to learn more about digital cutting and process solutions.
Request A Web/On Site Demo
