Stock Code: 870145
MS Series
AI VisionScan & Positioning Lace Laser Cutting Machine
Specifically engineered for rolling lace automatic cutting, our Lace Laser Cutting Machine employs advanced camera technology for lace feature recognition, ensuring high-precision cutting of fixed points and scallops. This machine excels in cutting multiple patterns simultaneously and operates continuously, making it ideal for large-scale production. Additionally, it is user-friendly, requiring only one operator for efficient piece collection.
The Sino-European team jointly developed an intelligent laser lace cutting machine.
Big working size multi-position cutting, multi-design layout one time, save fabric, save time.
One time molding technology, process reduction, save labour, more accurate and more efficient.
Equipped with automatic feeding and special visual reading system developed for the irregular and easy-to-stretch characteristics of lace to achieve precise positioning and cutting.
The whole machine adopts CE safety standard design and intelligent manufacturing, and the whole machine is more stable and safe.
Specifications
Model
Description
Industry application
Modules
Working area
Whole power
Laser power
System requirements
Power supply
Product dimensions
Weight
Custom
MS126L-TT
Double Laser Heads/AI VisionScan Sys
1200*600mm
3100W
150W
WIN10/11，PLT, DXF
220V/16A, 50HZ/60HZ
4897×1772×2156mm
1000KG
MS124L
Single Laser Head/AI VisionScan Sys
1200*400mm
2800W
150w
WIN10/11，PLT, DXF
220V/16A, 50HZ/60HZ
2478x1343x2036mm
750KG
MS124L-TT
Double Laser Heads
1200*400mm
3100W
150w
WIN10/11，PLT, DXF
220V/16A, 50HZ/60HZ
4064×1343×2061MM
1000KG
Product Function
-

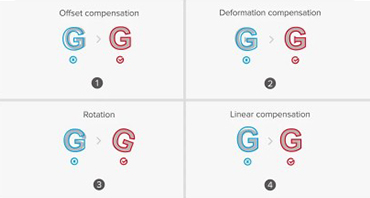

Precise and Intelligence CuttingPositioning accuracy of ±0.5mm, the best in the lace laser industry. Defective products can be selected. -
Positioning Cutting for Multiple DesignBig working size multi-position cutting, Multi-design layout one time, save fabric, save time; One time molding technology, Process reduction, save labour, more accurate and more efficient; No Missing, cutting precision ±0.5mm. -

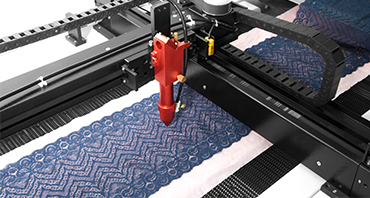

High Definition Industrial CameraBig working size multi-position cutting. Multi-design layout one time, save fabric, save time. -

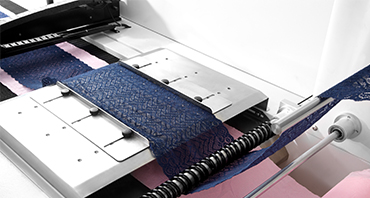

High Precision of Conveyor System for Soft Materials (Patent of China)Auto-feeding system：1200*400mm working size; and equipped with collect table. -
Design with CE standards, Automation, Integration DesignWarning Lamp: Remind the laser machine running state, convenient for the engineer operation. One engineer can control more machine. Automatically and seal work.
Expand More +
Functions & Modules
-
Enabling asynchronous cutting of different shapes, improving production efficiency and reducing production time.More Details -
Continuously working, efficiency increased again. Materials auto feeding, easier to operate and more automated than traditional feeding.More Details -

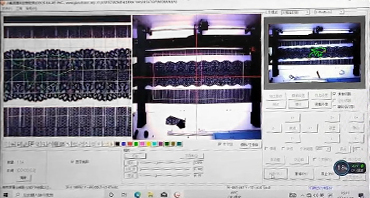

System Automatic extraction of contours within 5 seconds. (Large size pattern outline recognition), no need graphic processing, can instantly get the drawing file and then cut.More Details -
Achieve digital management, reduce paper-oriented work, empowering “Carbon Neutral” goals.More Details
Expand More +
Industry Solutions
-
Garment Industry
-
Underwear Industry
Garment Industry
Comprehensive Digital Cutting Solutions: Precision in Every Layer.
Incorporating innovative process solutions, leading the digital transformation in fabrication, offering impeccable cutting solutions from single to multi-layers.
Underwear Industry
AI VisionScan tech elevates lace cutting precision. Combined with our VisionScan PUR dispensing system and 3D non-contact bra cup cutting, we provide a streamlined digital solution for lingerie production, maximizing material use and ROI.
Book an virtual demonstration with us to learn more about digital cutting and process solutions.
Request A Web/On Site Demo
Get Manufacturing and Process Solutions
