Stock Code: 870145
GN Series
GN series Non-metal CO2 Laser Cutting & Engraving Machine
High precision non-metal laser cutting and engraving machine. The motion part adopts imported linear guide and high speed micro motor. It has embedded microcomputer control, DSP digital high speed processing technology, offline operation and humanized operation interface.
Precise cutting.
Intelligent operation.
High cutting accuracy.
High-precision linear guide.

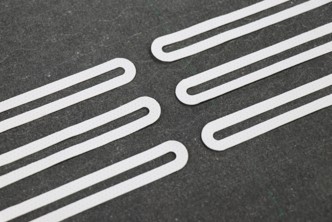

No burning and no yellowing.
High repeat positioning accuracy.
Specifications
Model
Description
Industry application
Modules
Working area
Whole power
Laser power
System requirements
Power supply
Product dimensions
Weight
Custom
GN641-2AT
250*300mm
≈2000W
≤90W
Windows 7/8/10 AL, PL, DXF, DST, DSB
220V/9A, 50Hz or 60Hz
1770X1030X1450mm
290KG
GN1280T
High precision double head laser cutting machine
1200*800mm
1100W
90W*2
-
-
1850×1300×1130mm
350KG
GN1080
Large working size with high precision laser cutting machine
900*700mm
1000W
90W
Windows XP/7/8/10, AI, PLT, DXF, DST, BMP, JPG, JPEG, PNA, TIF.
1000W
1860×1517×1102mm
220KG
GN750T
Precision double-head laser cutting machine
700*500mm
1100W
60W*2
Windows XP/7/8/10, AI, PLT, DXF, DST, BMP, JPG, JPEG, PNA, TIF.
1100W
1550×900×1090mm
220KG
GN641
Large working size with high precision laser cutting machine.
600*400mm
1100W
≤70W
Windows XP/7/8/10, AI, PLT, DXF , DST, BMP, JPG, JPEG, PNA, TIF.
1100W
1420×760×1095mm
160KG
GN640
Small high precision laser cutting machine
600*400mm
1100W
≤60W
Windows XP/7/8/10, AI, PLT, DXF , DST, BMP, JPG, JPEG, PNA, TIF.
220V,50Hz,9A
1120×760×1095mm
170KG
Product Function
-

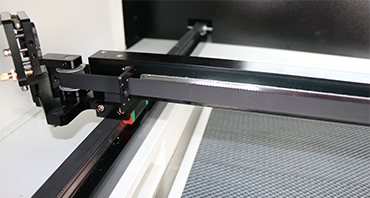

Linear GuideHigh position accuracy and long service life. Sliding block running friction coefficient is small low noise, fast speed, reinforcement and rust prevention. Easy maintenance,high speed and stable. -

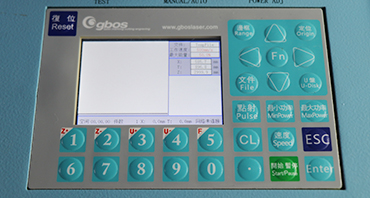

Control PanelThe operation interface is controlled by digital panel & computer software. All of parameter setting and process instructions can be finished on it. Both Chinese and English are available. -
Optional AI Super Camera/CameraAccording material transformation condition,automatic deformation cutting. Camera follow the label transformation to graph matching. -

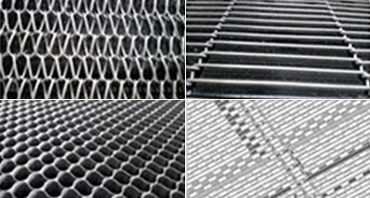

Different Conveyor Tables OptionalDifferent types of conveyor tables for different functions. (Honeycomb table ; Herringbone; E style; Grid optional). -
Offline SystemColor screen + offline board. Visualize workflow, graphical preview. Continue to work after power off and output by layer. Multiple input modes (PC/USB cable/network cable)
Expand More +
Functions & Modules
-
System Automatic extraction of contours within 5 seconds. (Large size pattern outline recognition), no need graphic processing, can instantly get the drawing file and then cut.More Details -
Realize intelligent identifying cutting along the edge, the identifying range: about 150mm*120mm.More Details -
Enabling asynchronous cutting of different shapes, improving production efficiency and reducing production time.More Details -
Different mesh panel materials and structures are suitable for different cutting materials and requirements.More Details -
Dual laser head on a single track, greatly improve efficiency.More Details
Expand More +
Industry Solutions
-
Electronic Industry
-
Jewelry industry
-
Automotive Interior Industry
-
Garment Accessories Industry
Automotive Interior Industry
Laser cutting seat cover, and other automotive interior materials becomes a trend due to the versatile laser technics of laser cutting, laser perforating, laser marking, and laser engraving.
Garment Accessories Industry
The camera quickly captures the outline of the label for precise cutting. The software automatically identifies unqualified products and cuts without burnt edges or yellow edges. Any angle of label is possible.
