Stock Code: 870145
V10 SCCD
Dual-Head Asynchronous AI VisionSan & Feeding Laser Cutting Machine
This laser cutting machine features a highly stable cast iron structure, with clamping and feeding functions and dual-head asynchronous cutting capability. It also supports AI VisionSan, enabling accurate recognition and positioning of knit fabric pieces of the same color.
Material rack.
Casting structure.
Projector positioning preview.
Automatic grip feeding system.
New upgrade of smart nesting.
Push-pull plate interactive cutting.
Smart dual-head async cutting system.
IoT system (machine remote connection & control by man).
SCCD for contour extracting and cutting digital printing shoe upper.
Specifications
Model
Description
Industry application
Modules
Working area
Whole power
Laser power
System requirements
Power supply
Product dimensions
Weight
Custom
V10SCCD
Two Heads Async Automatic/Grip Feeding/AI VisionScan Sys
1580*600mm
1580×600mm
130W
Windows XP/7/8/10, AI, PLT, DXF, DST, BMP, JPG, JPEG, PNA, TIF.
220V/16A, 50Hz or 60Hz
2254*2890*1800mm
1350KG
Product Function
-
Casting StructureX bridge in cast metal structure,be formed united,increasing high stability and accuracy. -
Smart Dual-head Async Cutting SystemProjector positioning preview. Automatic grip feeding. Smart pairing. Auto-nesting smart & unlimited length. Dual-head async cutting -

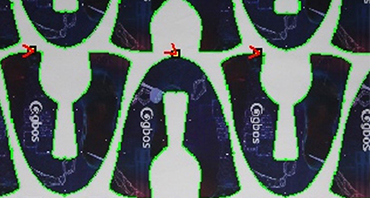

SCCD for Contour Extracting and Cutting Digital Printing Shoe UpperAuto-searching outlines for solving the problem of deform, offset and rotation. -

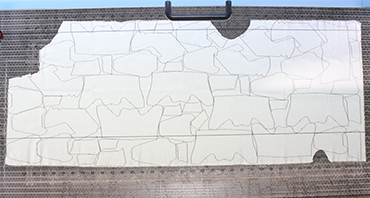

Projector Positioning PreviewInstant Preview of nesting effects - convenient, fast. -

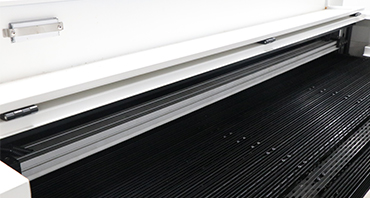

Automatic Grip Feeding SystemTruly integrated feeding system, not pulling shelf. Multi-materials auto-feeding knitted fabric, cloth, leather, foam(capable of multi-layers feeding). The software can measure the feeding length according to nesting, matching one sheet nicely with next, saving materials. Gripping feed system ensure materials are smooth. -
IoT System (machine remote connection & control by man)GBOS IoT system smartly monitor every machine by remote diagnosis, remote control, Auto updating of software and online information transfer etc. -
New Upgrade of Smart NestingMulti sizes one key nesting. Automatic separation, different colors for each size. Count automatically according to the layers of materials. -

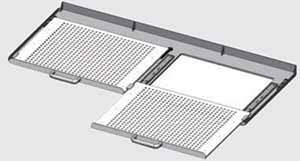

Push-pull Plate Interactive CuttingInteractive working for two tables. Working on one table while loading goods on the other table, improve work efficiency, more security. -

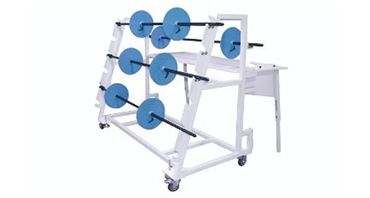

Material RackAuto-feeding system with multi roll shelf. Support feeding of 6 rolls at the same time.
Expand More +
Functions & Modules
-
Real-time preview of nesting result, convenient and fast. Real-time nesting, manual insert, maximize material utilization rate.More Details -
Enabling asynchronous cutting of different shapes, improving production efficiency and reducing production time.More Details -
Auto-feeding system with multi roll shelf. Support feeding of 6 rolls at the same time.More Details -
System Automatic extraction of contours within 5 seconds. (Large size pattern outline recognition), no need graphic processing, can instantly get the drawing file and then cut.More Details -
-
-
Purify and treat the smoke and waste gas generated during the cutting processMore Details -
Truly integrated feeding system, not pulling shelf. Multi-material auto-feeding: knitted fabric, cloth, leather, foam, etc. (can multi-layers feeding).More Details -
Continuously working, efficiency increased again. Materials auto feeding, easier to operate and more automated than traditional feeding.More Details -
Achieve digital management, reduce paper-oriented work, empowering “Carbon Neutral” goals.More Details
Expand More +
Industry Solutions
-
Footwear Industry
-
Garment Industry
Footwear Industry
AI-Driven, smart footwear Manufacturing 4.0: zero cutting-dies, one-stop digital cutting solutions.
Garment Industry
Comprehensive Digital Cutting Solutions: Precision in Every Layer.
Incorporating innovative process solutions, leading the digital transformation in fabrication, offering impeccable cutting solutions from single to multi-layers.
