Stock Code: 870145
R2 Series
R2-AT Shoe Mold Laser Engraving Machine

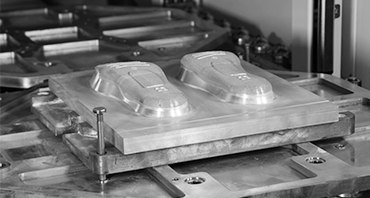

GBOS R2-AT is specially designed for shoe molds engraving, and processing accuracy reaches ±0.1mm.
It adopts the intelligent robot system, save time and labor.
It adopts the intelligent robot system, save time and labor.
Personalized customization.
Automatic loading and unloading.
Flexible in processing various textures.

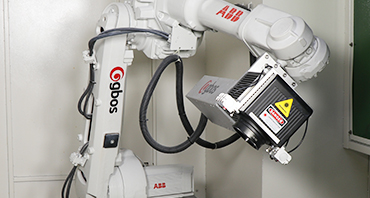

Six-axis robot: all work 360°, free movement.
The digital process confirms the effect in real time.
3D laser scanning galvanometer with dynamic focal length range of ±40mm.
Specifications
Model
Description
Industry application
Modules
Working area
Whole power
Laser power
System requirements
Power supply
Product dimensions
Weight
Custom
R2-AT
175*175mm
Main machine: 4KW Auxiliary machine: 3KW
≤100W
Windows 7/8/10 AI , PLT , DXF , DST ,DSB
Main machine: AC380V/20A/50Hz Auxiliary machine: AC220V/10A/50Hz
Main machine: 2450×2040×2000mm
Main machine 600KG, AI detection 120KG, drying system 120KG
R2-AT
①Working Area：175×175mm
②Overall Powerr：Main machine: 4KW
Auxiliary machine: 3KW
③Laser Power：≤100W
④Dimension：Main machine: 2450×2040×2000mm
Auxiliary machine: 2360×1640×1480mm
⑤Overall Weight：Main machine 600KG, AI detection 120KG, drying system 120KG
②Overall Powerr：Main machine: 4KW
Auxiliary machine: 3KW
③Laser Power：≤100W
④Dimension：Main machine: 2450×2040×2000mm
Auxiliary machine: 2360×1640×1480mm
⑤Overall Weight：Main machine 600KG, AI detection 120KG, drying system 120KG
175*175mm
4KW
≤100W
Windows 7/8/10 AI , PLT ,DXF ,DST , DSB
Main machine: AC380V/20A/50Hz Auxiliary machine: AC220V/10A/50Hz
2450×2040×2000mm
Main machine 600KG, AI detection 120KG, drying system 120KG
Product Function
-
High PrecisionVibrating lens repeatability ±0.1mm. -
Intelligent Automation SystemAutomatic loading and unloading can save time in installing and changing fixtures inside the main unit. -
Smart Robot SystemsSix-axis robot: all work 360°, free movement.
Expand More +
Functions & Modules
-
Six-axis robot: the base, shoulder, elbow, wrist 1, wrist 2, and wrist 3 can all work 360 degrees, achieving six degrees of freedom movement.More Details -
Achieve digital management, reduce paper-oriented work, empowering “Carbon Neutral” goals.More Details
Expand More +
Industry Solutions
-
Footwear Industry
Footwear Industry
AI-Driven, smart footwear Manufacturing 4.0: zero cutting-dies, one-stop digital cutting solutions.
