Stock Code: 870145
Green Pioneer XXP5-2D Series
CO2 Laser Denim Finishing System
Jeans/denim Jacket Mass Production
The Preferred Model For Process Splitting
The Preferred Model For Process Splitting
Working area 1200x1200mm.
Fully automatic feeding system.
Process effect projection preview positioning.
Specifications
Model
Description
Industry application
Modules
Working area
Whole power
Laser power
System requirements
Power supply
Product dimensions
Weight
Custom
XXP5-320-2D
S-Denim 6.0
1200*1200mm
max 9000W
≤320W
Windows XP/7/8/10, AI, PLT, DXF, DST, BMP, JPG, JPEG, PNG, TIF.
380V/18A, 50Hz or 60Hz
3100x1840x2160mm
950KGs
XXP5-600-2D
S-Denim 6.0
1200*1200mm
≈9000W
≤600W
Windows XP/7/8/10, AI, PLT, DXF, DST, BMP, JPG, JPEG, PNG, TIF.
380V/18A, 50Hz or 60Hz
3100x1840x2160mm
1000KG
Product Function
-
Environmental-friendlyNo need to use any chemical. -
EfficientFinish one pair of jeans within 10 seconds for the artwork of cat's whisker. -
HealthyNo polluted wemployees' physical and mental health. -
Energy-savingWorking environment guarantees 10L water could be saved by laser wash for each pair of jeans compared to the traditional water washing process. -
Convenient Positioning SystemRed light positioning strafing forming. Projector positioning system. -

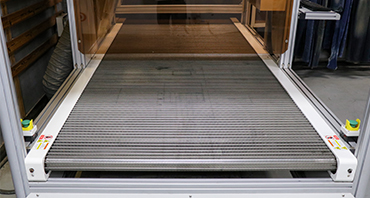

Auto-feeding SystemAutomatic feeding, flat bed feeding system with keel structure, maintenance-free for whole machine life. -
Multi-effects, Integrated Forming SystemAll-in-one application: Whisker, PP Spray, damage, grind, full pattern. -

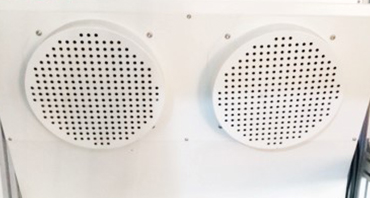

Exhausting SystemGet rid of the smoke efficiently, reduce pollution indoor. -

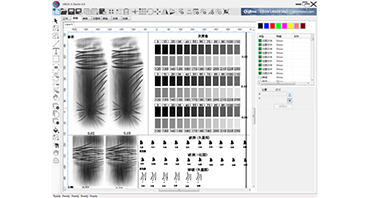

User Friendly SoftwareEasy for users to learn and operate. -
Creative Images DatabaseOur cloud database with creative images are available for downloading, saving you the cost of a designer and time spent on designing.
Expand More +
Functions & Modules
-
-
Real-time preview of nesting result, convenient and fast. Real-time nesting, manual insert, maximize material utilization rate.More Details -
Purify and treat the smoke and waste gas generated during the cutting processMore Details -
Continuously working, efficiency increased again. Materials auto feeding, easier to operate and more automated than traditional feeding.More Details
Expand More +
Industry Solutions
-
Denim Industry
Denim Industry
Green solutions with less water, less chemical, less energy, less emission, one standard for production, and easy operation.
Book an virtual demonstration with us to learn more about digital cutting and process solutions.
Request A Web/On Site Demo
