G Series

Large-format CO2 Laser Cutting Machine

A large-format laser cutting machine for non-metallic materials, which can be customized based on material size and is available in single or dual head configurations.

Big area cutting.

CO2 RF laser tube optional.

Auto feeding system (optional).

Projection preview positon (optional).

Inquiry Request a free sample test

Specifications

Model

Description

Industry application

Modules

Working area

Whole power

Laser power

System requirements

Power supply

Product dimensions

Weight

Custom

G2516-AT

Auto Feeding Sys

2500*1600mm

2500W

130W

WIN10/11，PLT, DXF

220V/16A, 50HZ/60HZ

3720×2250×1200mm

800KG

More Details

G2016T

Double Laser Heads

2000*1600mm

2000W

130W

WIN10/11，PLT, DXF

220V/16A, 50HZ/60HZ

3400×2300×1200mm

650KG

More Details

Product Function

ITS2 Intelligent Nesting(Optional)

Can achieve Auto-Nesting and Manual intervention possible. Specially for real leather irregular nesting.
Projection Preview Position(Optional)

The system projects the pattern onto the material according to the drawing file, can achieve positioning cutting.
Super Camera Positioning Cutting(Optional)

Suitable for digital printing fabric cutting.
Standard with Dense Working Table

Suitable for fabric cutting.

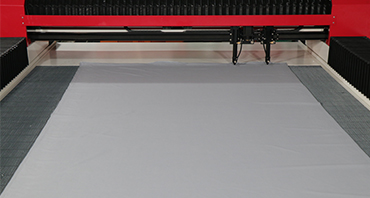

Big Area Cutting

Big cutting area: 2500*1600mm; 3000*1600mm(Optional).

Expand More +

Functions & Modules

Dual Laser Heads, Asynchronous

Two laser heads work independently across the cutting area, each running its own shapes at its own pace—mixed jobs and multi-angle cuts finish in one pass instead of queuing up.
More Details
Herringbone Feeding Mesh (Fine Mesh)

A fine herringbone-pattern feeding mesh for the cutting bed: the dense weave supports material smoothly during feeding, suppresses laser back-reflection to protect cut quality, and stays well-ventilated and easy to clean.
More Details
Single-Layer Automatic Feeding System, Left to Right (AT1)

Continuous left-to-right auto feeding for roll-to-roll materials: the machine keeps cutting while material flows in, with less handling and more automation than traditional feeding.
More Details

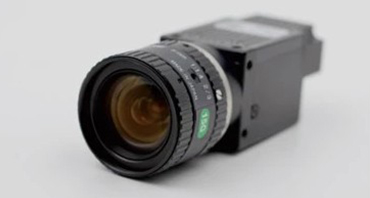

CCD Camera VisionScan System

A CCD camera that recognizes each piece and cuts along its edge intelligently, with an identifying range of about 150 × 120 mm—feature-point, multi-point, and contour-extraction positioning in one system.
More Details
SCCD Super Camera VisionScan System

The SCCD Super Camera VisionScan system extracts pattern contours automatically in as fast as 5 seconds—even large-format patterns—with no graphic processing: scan, get the cutting file instantly, and cut.
More Details

Expand More +

Videos Show

Industry Solutions

Garment Industry
Footwear Industry

Garment Industry

Comprehensive digital cutting — precision in every layer. With innovative process solutions, we lead the digital transformation of fabric production, delivering flawless cutting from single-ply to multi-layer.

Footwear Industry

AI-driven Smart Footwear Manufacturing 4.0: zero cutting dies, one-stop digital cutting.
